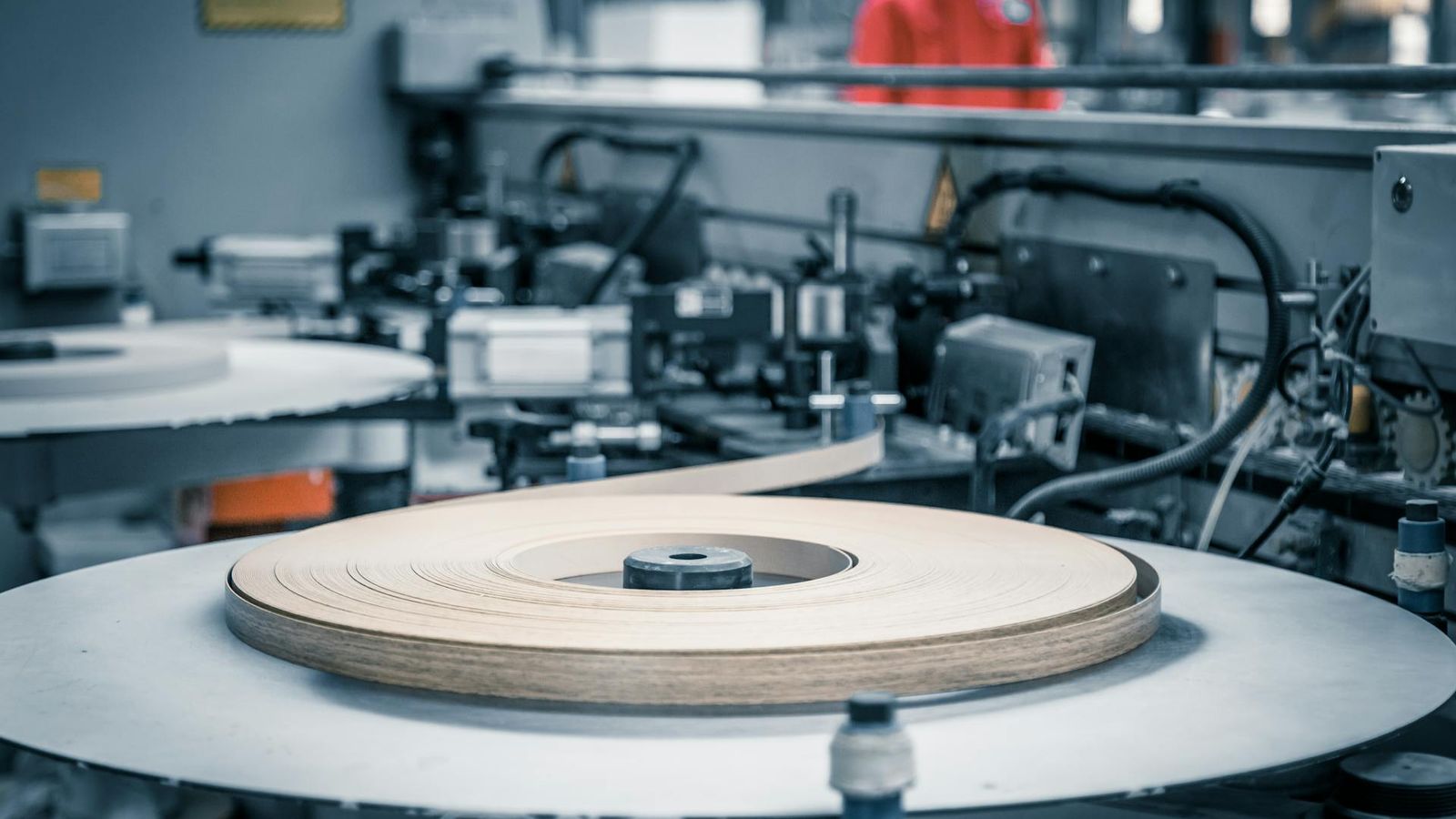

Edge banding
Catch glue-line gaps, banding misalignment, end-trim chip-out, and colour mismatch before panels leave the edge bander.
Automated quality inspection for edge-banding lines, running on a refurbished iPhone alongside your edge bander, end-trimmer, and buffer.
What is automated quality inspection for edge banding?
AI defect detection for edge banding uses a camera and a vision model to watch every panel as it leaves the edge bander, the end-trim cell, and the buffing station, and to flag non-conforming pieces before they reach the stacker. Instead of an operator at the trim station or rigid rule-based vision, the model learns the banding chemistry, glue-line geometry, end-trim profile, and colour signature of your SKU portfolio, and applies a consistent visual checkpoint across shifts, line speeds, and material changeovers.
Edge-banded panels are particularly hard to inspect at line speed because the visible line is one to three millimetres wide, the band shade has to track the panel face within a tight tolerance, and the corner radius takes the brunt of every alignment error and chip-out event. Rule-based vision built around a single banding profile breaks the moment you swap to a different band thickness, a different glue, or a different panel shade. AI-led inspection handles those variations because the model learns from real production frames rather than from a fixed threshold.
The result is an automated visual checkpoint that complements your end-of-line sample and gives you a panel-by-panel image record. When a furniture-OEM query comes back six weeks later, you can pull the frames from the exact production window and either confirm the defect or push back with evidence.
Defects we catch on edge-banding lines
Glue-line gaps
Glue-line gaps are visible separations between the band and the panel substrate, caused by hot-melt temperature drift, low spread weight, or feed-speed mismatch through the heating zone. They show up first as a hairline along the corner where the band lifts under any flex, well before the band peels in transit. Operators at the buffer catch the obvious open seams but miss the borderline gaps that pass at warehouse lighting. The AI model learns the in-spec glue-line signature and detects the local separation at the buffer station before the panel reaches the stacker.
Banding misalignment and overhang
Banding misalignment is the lateral offset between the band and the substrate edge, caused by feed-roller drift, substrate thickness variation, or band-roll tension changes across a roll. Overhang shows up as a band that extends beyond the panel face by more than the buffer can clean, and underhang shows up as a band that stops short and leaves a strip of substrate visible. Manual operators catch the worst cases at the buffer but miss the borderline panels that pass the buffer and fail at the customer's CNC. The AI model picks up the lateral offset in a single frame and flags any panel that exceeds your tolerance.
End-trim chip-out
End-trim chip-out is the splintering or fracture at the corners of the banded panel, caused by dull trim cutters, feed-speed mismatch at the end-trimmer, or brittle band material. It is the first thing the kitchen-cabinet OEM checks at receiving, and a single chipped corner sends the whole pallet back. The AI model holds the in-spec corner texture for each band material and flags chip-out in the corner frames before the panel reaches the buffer.
Banding scratches and surface damage
Scratches are the parallel marks left by misaligned post-processing rollers, debris on the buffer pads, or pallet-edge contact between stations, and they ruin the visible finish on a high-gloss or printed band. Manual operators look for the worst cases but cannot watch every panel at line speed. The AI model learns the in-spec band surface and flags any local scratch or surface deviation that crosses your tolerance, so the operator can change buffer pads or check roller bearings before a full shift of marked panels ships.
Colour mismatch with panel face
Colour mismatch is the visible band-to-face shade delta caused by band-roll lot variation, panel print drift, or lighting differences between the bander and the buffer. The mismatch is invisible under the warehouse fluorescents that the operator works under and obvious under the showroom-floor track lights the customer sees. The AI model holds a learned reference shade for the band against the panel face and flags shade drift as soon as the local delta exceeds your spec.
Adhesive squeeze-out and bleed
Squeeze-out is the visible glue line that bleeds out beyond the band edge after pressing, caused by excess spread weight, heat-zone over-cure, or feed-pressure spikes. It leaves a sticky bead at the band-substrate junction that the buffer cannot fully recover, and it shows up as a dark line under the customer's finishing. The AI model picks up the bead pattern at the buffer and flags any panel that exceeds your acceptance threshold, so the operator can adjust glue dosing before the next pallet ships.
The lighting setup that makes this work on an edge-banding line is a diffuse overhead light over the buffer station to read band surface and shade, plus a low-angle ring light at the end-trimmer to read corner profiles. An iPhone Pro with macro and wide-angle lenses handles the seven defect families from a single inspection station per critical control point. We synchronise the rig with the conveyor encoder so that flagged panels drive a downstream divert or hold decision. We spec the optics with you during onboarding.
How Enao runs on an edge-banding line
The full hardware rig costs less than €1,000 and consists of a refurbished iPhone Pro, a diffuse overhead light with an optional low-angle ring light for corner inspection, a USB-C cable, and a mount that clamps over the bander outfeed, the end-trimmer, or the buffer station. PLC integration is not required for the first deployment, the rig fits in a flight case, and the line keeps running while you set it up.
Onboarding is self-serve. Your line team mounts the rig, opens the Enao app, and starts collecting reference frames at the next changeover. Day one returns 80% accuracy without any prior labelling, and by day fourteen the model is operating above the manual inspector on the defect families it has seen, improving with every flagged panel that the line confirms or rejects.
Each line teaches its own model what its band materials, glue lines, and corner profiles look like. When you swap to a different band thickness or shade on the same bander, the model adapts in a single shift. When you bring a sister line online with a similar product family, the second model starts from the first model's experience and the marginal effort drops sharply.
Out-of-spec panels stop reaching the stacker, scrap is logged at the inspection point rather than at the QC office, and your operators get back the hours of attention they need for the parts of the job that still need a human, including bander setup, glue tuning, and customer complaints.
How Enao compares to manual inspection and traditional machine vision
For edge-banding producers the comparison sharpens around five dimensions.
Setup time on an edge-banding line. — Manual visual inspection: hours of training per operator, ongoing labour. Traditional machine vision (intelgic, baumerinspection, Overview.ai, edgeimpulse, Robovision): three to nine months of integration with a system integrator, plus a rule set per banding material. Enao: deployed in a week by your own team on a refurbished iPhone, day one at 80% accuracy.
Hardware cost per line. — Manual visual inspection: none upfront, ongoing labour cost. Traditional machine vision: €40,000 to €200,000 per line for industrial cameras, structured lighting, and integration. Enao: under €1,000 per line with a refurbished iPhone Pro, lamp, and mount.
Handling new band materials and panel shades. — Manual visual inspection: re-train operators for every new SKU. Traditional machine vision: rewrite the rule set per recipe, often outsourced to the integrator. Enao: re-teach the model on new band materials and shades in a single shift, no code to touch.
Detection accuracy on subtle shade and corner drift. — Manual visual inspection: high at shift start, drops measurably after three hours. Traditional machine vision: strong on lateral overhang, weak on subtle shade mismatch and corner-profile drift. Enao: learns band surfaces and corner signatures from reference frames and holds accuracy across shifts and runs.
Who runs it. — Manual visual inspection: trained operator at the buffer. Traditional machine vision: system integrator or a specialised vision engineer. Enao: your line team, no external specialist required.
Furniture and retail-fixture OEMs change vendors over the cost of a chipped corner, and the cost of a chargeback or a quiet category-manager phone call sits well above the cost of an iPhone-based inspection rig. Enao is built for that gap.
