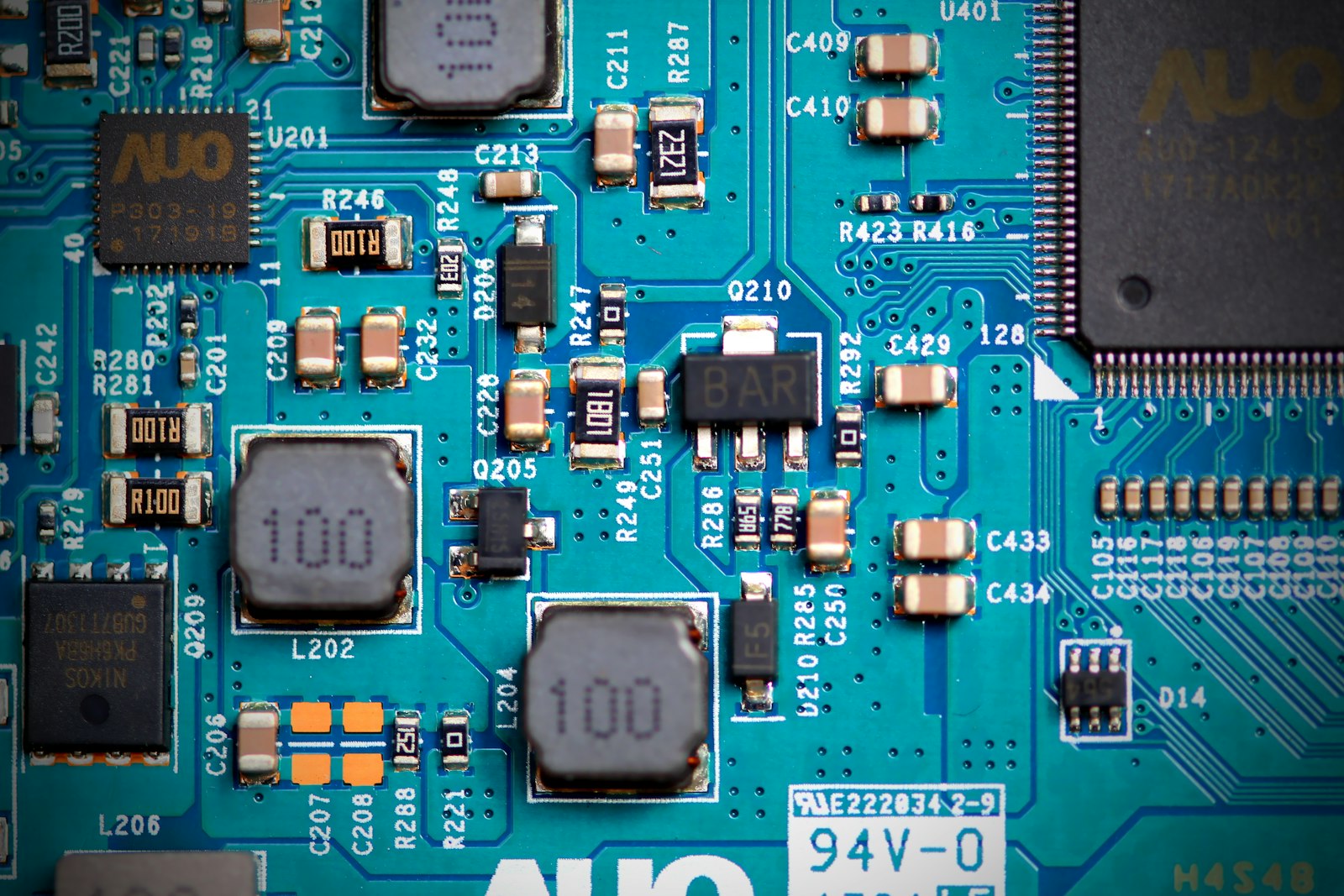

AI defect detection on SMT lines: cutting false-call costs
IPC-A-610 Class 3 acceptance on reflow-era SMT assemblies forces a 99.7 percent accept rate. Traditional rule-based AOI gets there with a false-call rate around 1.8 percent. Every false call is an operator minute. That is where AI changes the math.
SMT is the home turf of AOI and has been for 20 years. What changed in 2024 and 2025 is that the limiting factor on most SMT lines moved from missed defects to the cost of false calls. Operator time spent reviewing false positives is the new bottleneck, and AI cuts it without sacrificing accept rate.
SMT defect taxonomy
Five defect classes dominate reflow-era SMT rework lists. Tombstoning, where one end of a chip component lifted during reflow. Solder bridging between adjacent pads. Insufficient solder where the joint did not get enough paste. Skewed components where pick-and-place placement drifted. Missing components where a reel jam dropped the part.
Four more show up in lower volume but higher cost: lifted leads on QFPs, voids in BGA joints visible only in X-ray, tombstoned 0201 and 01005 passives, and solder balls from paste drift. AI models detect the first five as well as traditional AOI and catch the next four at rates traditional AOI does not hold.
Why rule-based AOI false-calls cost more than missed defects
A missed defect costs the rework plus the warranty exposure. A false call costs 30 to 90 seconds of operator review time plus potential line stoppage. At 3,000 boards per shift and a 1.8 percent false-call rate, the line generates 54 false alarms per shift. Each one costs 60 seconds of review. That is 54 operator-minutes per shift of avoidable work.
Multiply across three shifts and 250 operating days and one line's false-call tax is roughly 675 operator-hours per year. At EUR 40 fully loaded per hour, that is EUR 27,000 per line per year sitting on the floor.
How AI cuts false calls at the same accept rate
Traditional AOI evaluates each joint against a geometric rule set. AI evaluates against a learned representation of good joints. The practical difference is that AI handles the distribution of acceptable-but-unusual joints without calling them defects.
Published field numbers from AI-augmented AOI deployments show false-call rates dropping from 1.8 percent to around 0.4 percent while maintaining the 99.7 percent accept rate. That is 40 false alarms per shift instead of 54 on a typical line, or a 22 percent reduction in operator review burden with no change in miss rate.
How much training data is actually needed
Less than most teams expect. For the top five SMT defect classes, 500 to 1,000 labeled examples per class is enough to match traditional AOI. For the harder four (lifted leads, BGA voids, 0201 tombstoning, solder balls), 2,000 to 5,000 examples per class is typical.
Most SMT plants have this data in their AOI logs already. The work is cleaning it and aligning it with current process windows, not capturing it from scratch. A commissioning engineer usually gets this done in two to three weeks.
Integrating AI into existing SMT lines
Post-reflow is the slot. The traditional inspection station sits there already in most lines, so the AI inspection runs in parallel as a second opinion during commissioning. Once confidence is established, AI takes primary duty and the rule-based system goes to shadow or retires.
The integration handshake is MES over OPC UA. The AI system publishes a pass-fail plus a confidence score per joint. The MES stores both and feeds the SPC chart. Most deployments are wired up inside a week.
See our companion post on AOI beyond PCB for the non-SMT context. For the broader model-type question, our anomaly detection overview covers when anomaly models beat defect models. The 20 manufacturing use cases round-up lists the broader category.
Enao Vision ships an iPhone-based post-reflow station as a pilot deployment for SMT lines that want to evaluate AI without ripping out their AOI. False-call reduction is the anchored ROI metric because it is the one every line manager can quote. Model tuning and reference data sets for SMT-specific classes get shared in our community Slack.
The SMT AOI category has not moved for a decade because the incumbents were good enough. AI is not making them obsolete; it is making them more accurate by cutting the false-call tax that has been the cost of AOI since day one.
